SurveyCam® Inspection System.
Our exclusive SurveyCam inspection system, combined with the SurveyCam telescopic pole, puts you exactly where you need to be and see.

For instant access, as well as the confidence and security of seeing what's really happening, SurveyCam is a valuable asset for your business.

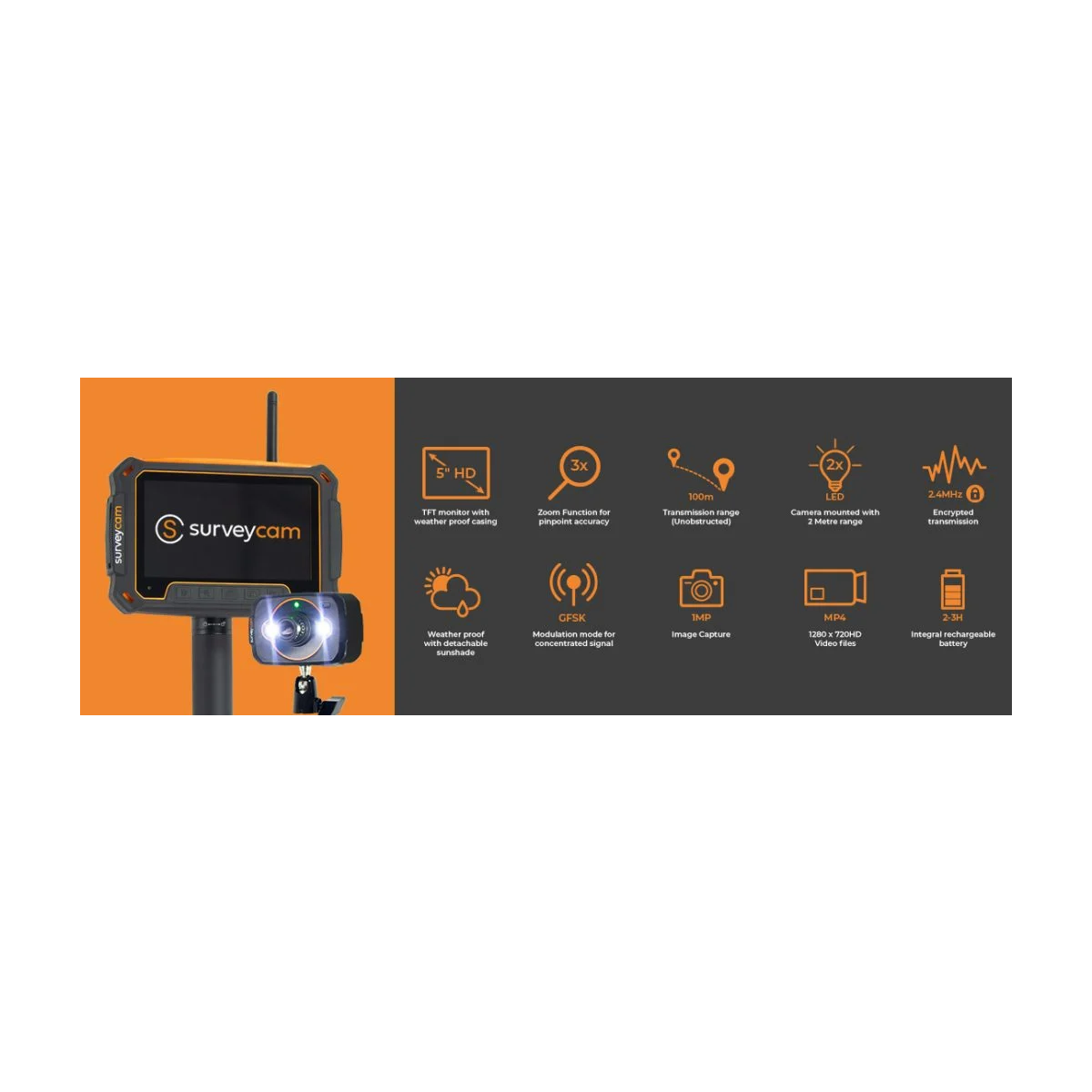

Features:

Monitor Specifications:

Screen Size: 5-inch TFT LCD
Display Resolution: 1280×720
Unobstructed Reception Range: 100 meters
Zoom: 3 Levels
Modulation Mode: GFSK
Power Supply: 5V (VDC)
Battery (Built-in): 2500mAh
Charging Time: 3 Hours
Battery Life (Fully Charged): 3 Hours
Memory: T-Flash Card
Maximum Memory Size: 64GB
Image Format: 1 x JPEG
Video Format: 1280 x 720 HD – MP4
Photo/Video Resolution: 720 pixels
Operating Temperature: -10°C ~ +50°C / +14°C ~ +122°F
Dimensions: 150L x 20P x 100H
Weight: 255g
Weatherproof rating: IP64 for light rain
Camera specifications:

Image sensor: 1/4-inch JX-H62
Effective pixels: 1280×720
Viewing angle: 45°
Transmission frequency: encrypted 2400~2483 MHz
Modulation mode: GFSK
Effective unobstructed range: 100 meters
White LED range: 2 meters
Power supply: 5V DVC
Battery (built-in): 1200mAh
Charging time: 2 hours
Operating time (fully charged): 2.5 hours (LED off) / 2 hours (LED on)
Operating temperature: ℃/°F -10~+50°C /+14~+122°F
Dimensions: 60W x 40D x 40H mm
Weight: 65g
Weatherproof Rating: IP64 for light rain
SurveyCam Output:

Video: 1280x720HD During extended filming, videos are automatically saved as 10-minute video files. A 15-minute filming session will be recorded as 1 x 10-minute / 1 x 5-minute videos
Images: 1MP
SurveyCam Camera Case:

Dimensions: 33 cm L x 28 cm W x 12 cm H
Watertight seal around the lid
Foam-protected storage compartments
Secure double-turn latches
Soft-grip handle
Holes on each edge for padlocking
High-quality injection-molded polypropylene

Clear close-ups – Consistent, high-quality images on which to base decisions.
Up to 100 m away – For visual surveillance where access is restricted.
Easy and instant access – No ladders, cherry pickers, or drones required.
Camera-mounted lights – Clear visibility in dark areas, ideal for indoor use.
Capture images and videos – Save and share results immediately.
Secure encrypted signal – Consistent, reliable, and secure image transmission.
Easy to use – Minimal training, no HSE certificate or drone license required.
Compact storage – Lightweight, portable, and ready in an instant.

High level, at eye level:

The large 5-inch HD TFT LCD screen puts you clearly in the picture. View high-contrast, high-definition images in vivid color on the large screen. For poorly lit locations, the camera-mounted LEDs with a range of 2 m will instantly illuminate the inspected area, while the generous (and removable) sunshade protects the screen from glare and rain showers. For up-close confidence, the 3x zoom function lets you focus on precise areas of interest.

Ideal for complex and detailed inspection projects, SurveyCam gives you access to clear, high-level project information so you can make informed decisions about what you can see.

All-Weather Monitor:

Designed to withstand harsh working environments, the monitor is protected by a weather-resistant housing, a removable sun/rain shield, and an easy-to-grip handle around the screen. Raised function buttons with clear icons allow you to continue capturing images and videos while keeping your gloves on, making it ideal for cold and wet gutter cleaning projects.

Attach it to the telescopic handle or, for hands-free, eye-level viewing, simply attach the SurveyCam to your inspection pole or gutter vacuum pole. Weighing only 255g, the system is incredibly lightweight, with the built-in rechargeable battery providing up to 3 hours of screen time.

High-performance camera:

For instant images transmitted up to 100 m*, simply turn on the camera and raise it to the inspection site. The manually adjustable ¼-inch image sensor lens, combined with the two LED lights, is perfect for close-up details, such as barcode scanning, making it ideal for inventory verification.

Weighing just 65 g, the camera attaches perfectly to the neck of your tool carrier, so you can keep an eye on gutter cleaning progress.

View and share images and videos:

Capture images and videos for instant playback via the SurveyCam 5" HD display. You can also share them via a mobile device using the Micro SD card and card reader. Quick and easy to set up, it's ideal for sharing results on-site, allowing you to make informed decisions and act on what you can see.

Secure and reliable connection – that goes the distance – up to 100 m*

Losing signal when working at height is both frustrating and time-consuming. Our SurveyCam® inspection system combines a concentrated signal with locked and encrypted frequency transmission to ensure consistent, clear image transmission up to 100 m (*unobstructed range).

Encrypted transmission: The signal transmission between the camera and monitor is carried out on a coded frequency. This encryption between devices ensures "locked" and inaccessible image transmission, making it makes it ideal for sensitive and confidential high-level surveillance projects. This maximum level of security is ideal for police forces, the military, or those working on proprietary developments at risk of hacking.
Concentrated signal: Thanks to GFSK (Gaussian Frequency Shift Keying) modulation, the system communicates via a narrower transmission bandwidth than standard FSK, resulting in a stronger and more stable signal. It is also less prone to interference from other devices such as mobile phones and more reliable than Wi-Fi. It also offers a greater working distance, with the system capable of an unobstructed range of 100 m.
Customize and accessorize to suit your projects:

SurveyCam® comes with a range of camera and monitor mounts and accessories tailored to each project. So, whether outdoors in bright sunlight, cleaning gutters, or inside a warehouse inspecting inventory, you can access where you need to be. See.

The monitor is equipped with a telescopic handle or attaches to a suction cup pole or SurveyCam telescopic inspection pole for hands-free viewing. A deep, removable sunshade ensures a perfect view, even in bright sunlight.

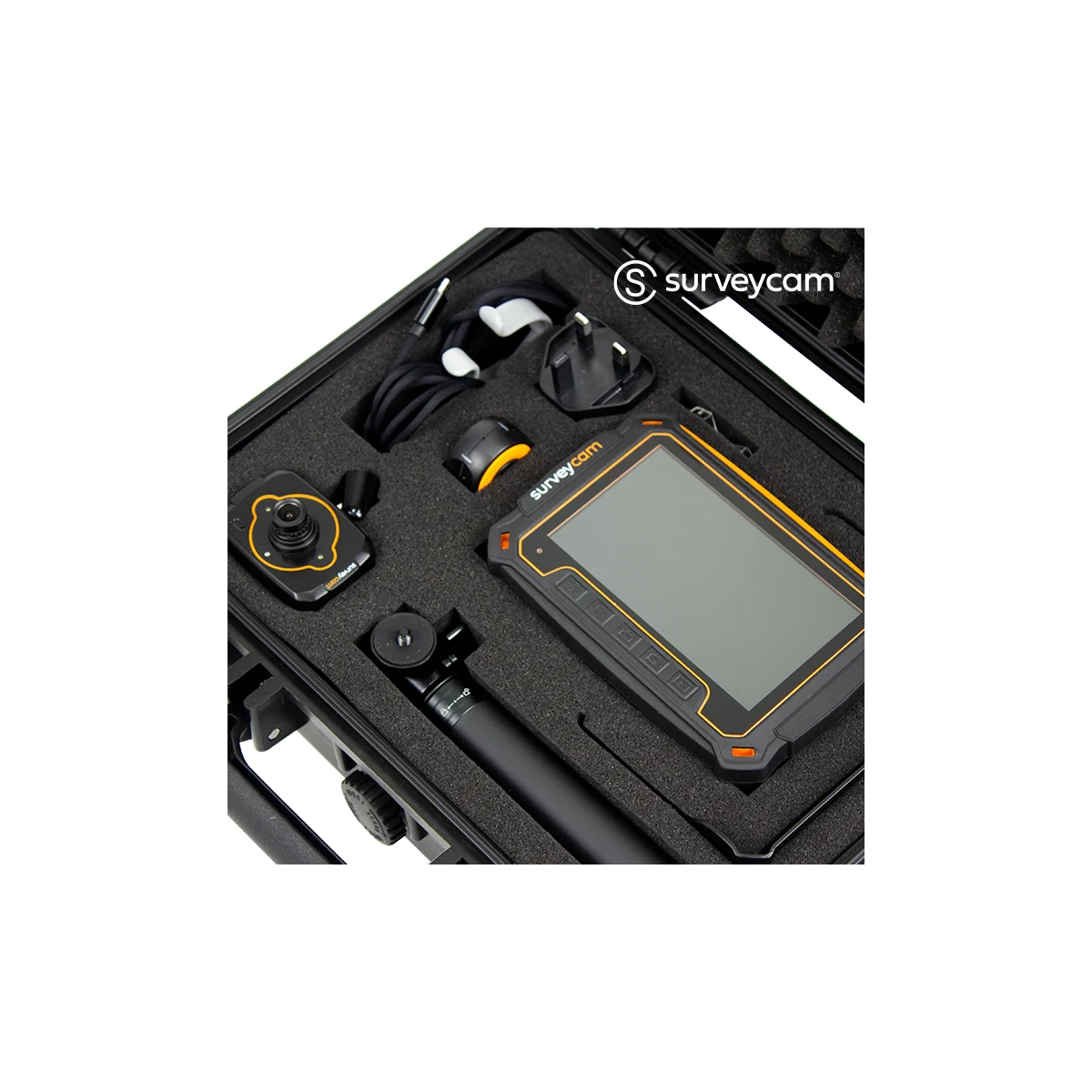

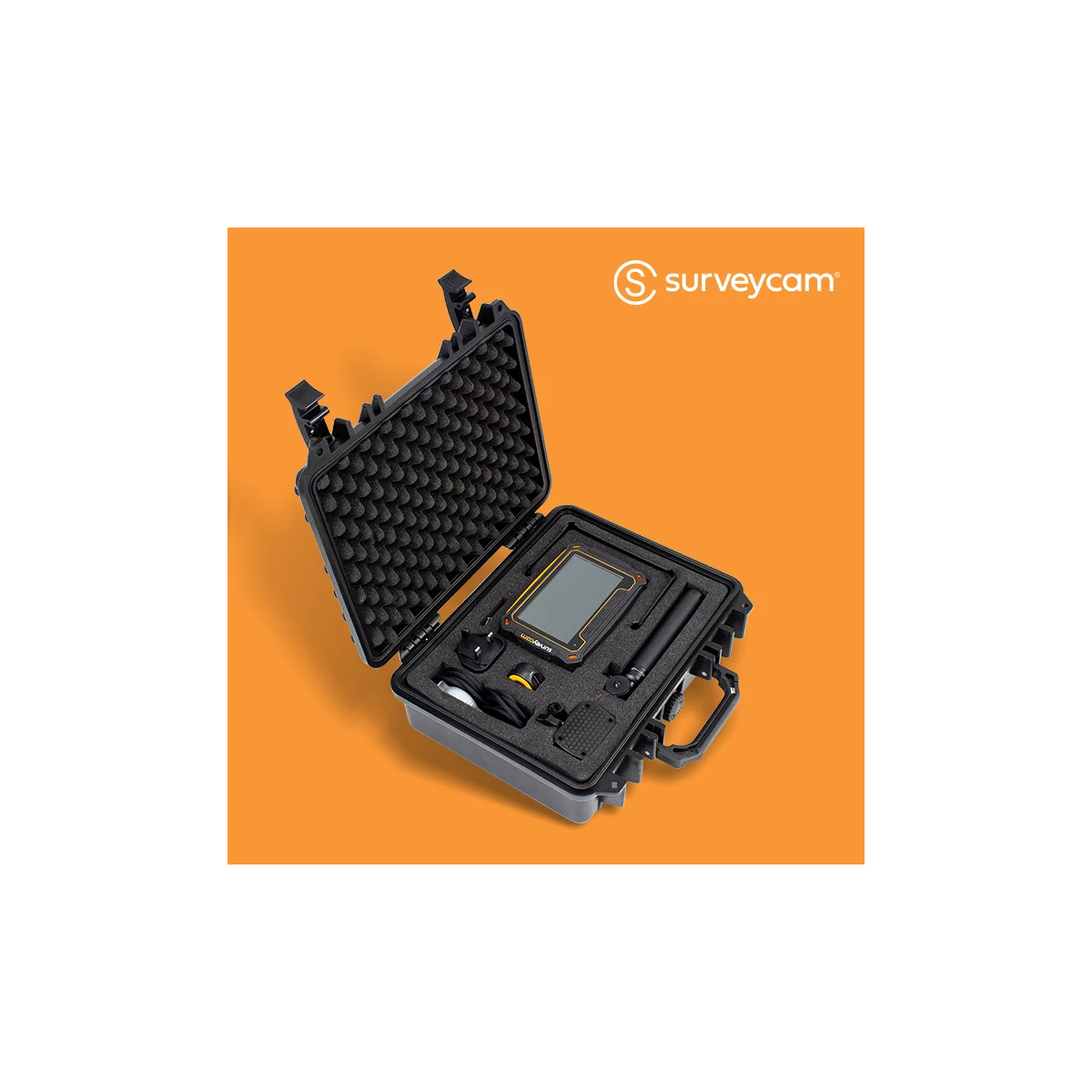

Packed and protected in a sturdy case.

Protect your system during storage and transport with a professional, weather-resistant camera case. With a foam-lined compartment for each item, it's easy to see and secure the camera, monitor, and accessories. Ready to go and take with you as needed.

Waterproof seal around the lid
Easy-to-open double-turn latches
Holes on each side for double padlocks

Included as standard:

5-inch HD monitor:

1 x Monitor antenna
1 x 8GB TF card
1 x Monitor sunshade
1 x Multi-function TF card reader
1 x Black wide-base monitor stand
1 x Telescopic handle
Camera:

1 x camera mount
1 x outlet adapter
1 x car adapter
2 USB charging cables
Protective camera case:

33 cm L x 28 cm W x 12 cm H
Water-resistant, lockable convoluted foam on the lid / Foam sections cut to the shape of the base.
