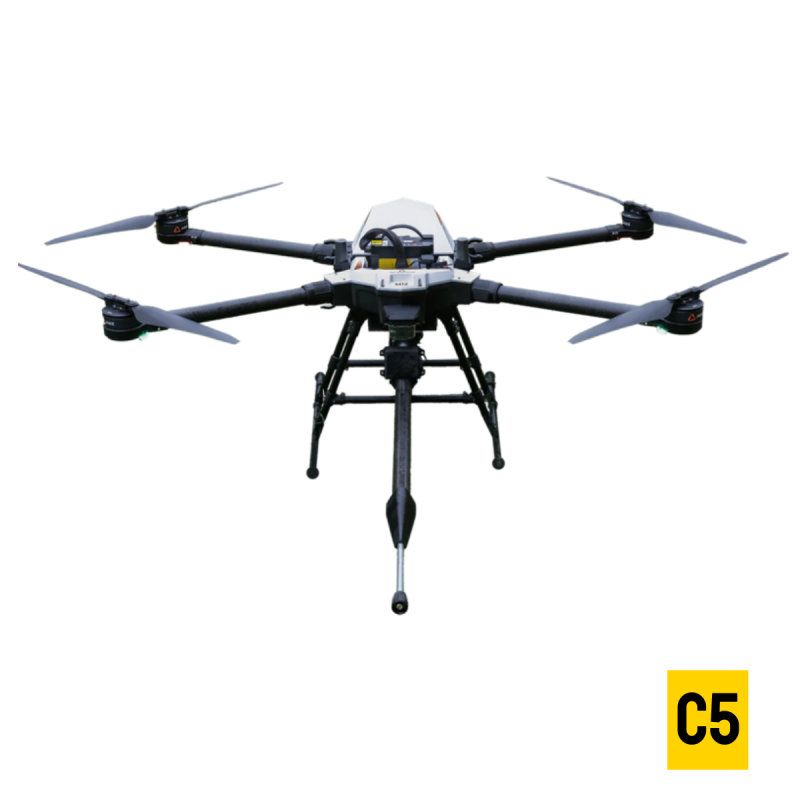

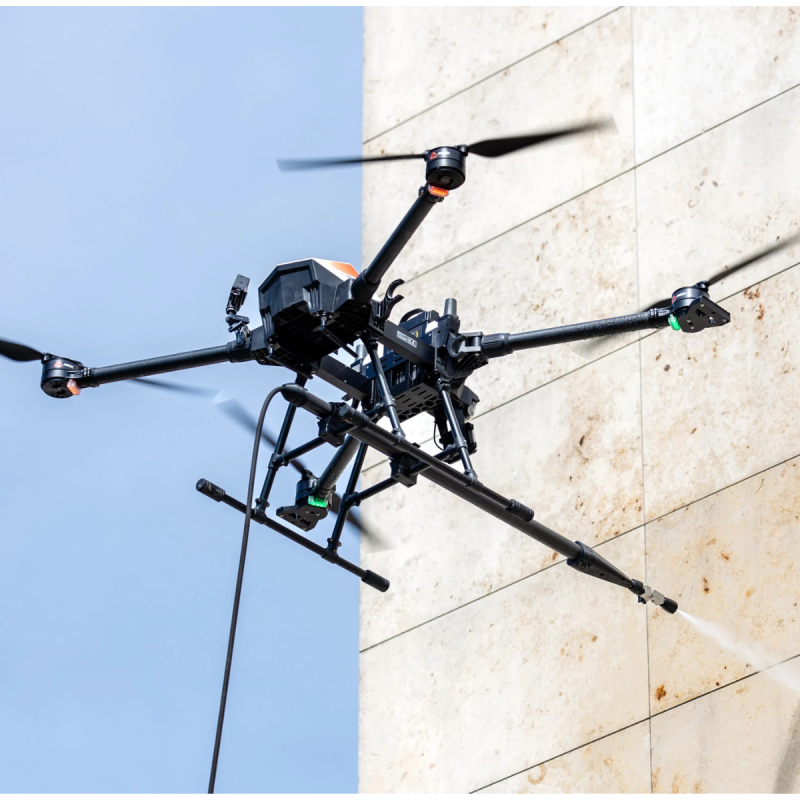

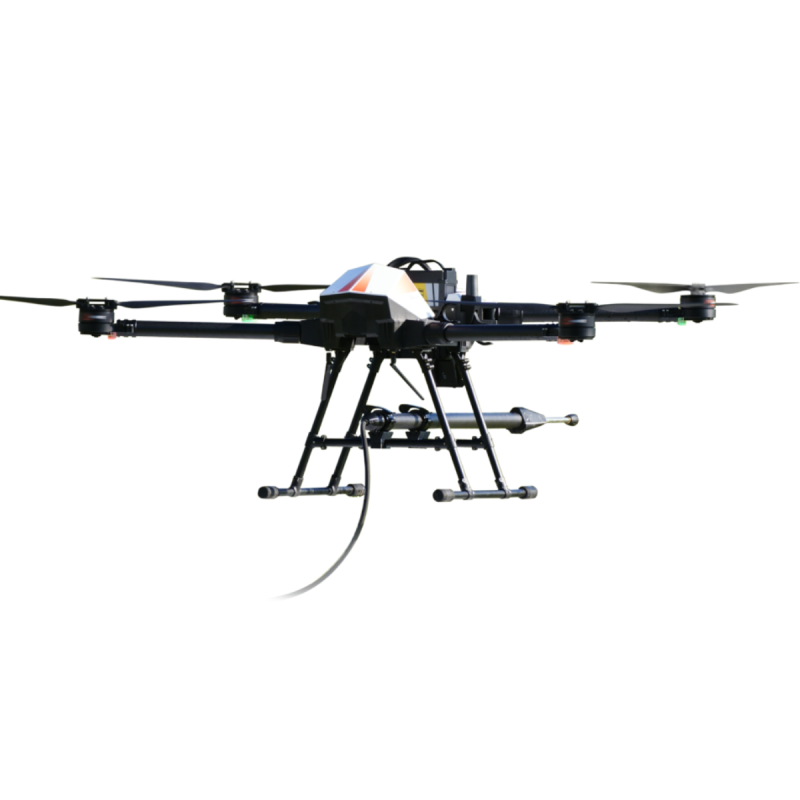

ABZ Innovation C10 Dual RTK High-Pressure Drone

ABZ Innovation C10 Dual RTK High-Pressure Drone

Discover the C10, equipped as standard with:

- Dual RTK (RTK positioning: For precise hovering and safe navigation)
- Front-facing radar (Automatic distance control: Utilizing radar technology)
- High and low pressure lance (up to 200 bar)
- Water and dust resistance: Limited resistance for safe operation in light rain and dusty environments.

- Modular accessories: Ensures safe operation with interchangeable cleaning tools.

- GPS and GNSS navigation: Offers increased stability and accuracy.

- Wind resistance: Operates safely in moderate winds (10 m/s).

- Data security: No data is transmitted to remote servers, ensuring confidentiality.

- European manufacturing quality: Our drones are assembled and rigorously tested at our headquarters in Hungary.

Delivered to your door with a complete manual.

We can also provide on-site training at our warehouse. We recommend completing training with "high-pressure" modules before use.

After-sales service provided in France.

General Specifications – C10

Manufacturer
ABZ Innovation Ltd., 2000 Szentendre, Kalászi út 3, Hungary

Weight

Maximum takeoff weight: 24.9 kg

Total weight with battery: 17.3 kg

Total weight without battery: 13 kg
(Possible variation ±1 kg depending on configuration)

Dimensions

Maximum characteristic dimension (distance between opposing propellers): 2290 mm

Unfolded with spray lance (L × W × H): 2060 × 1600 × 600 mm

Folded with spray lance (L × W × H): 1170 × 540 × 600 mm

Folded without spray lance (L × W × H): 770 × 540 × 600 mm

Flight Performance

Maximum Flight Time: 18 minutes

Maximum AMSL Altitude: 4500 m

Maximum AGL Altitude: 120 m

Maximum Horizontal Speed: 3 m/s

Maximum Pitch Angle: 17°

Maximum Wind Speed: 10 m/s

Navigation and Positioning

GNSS: GPS, GLONASS, Galileo, BeiDou

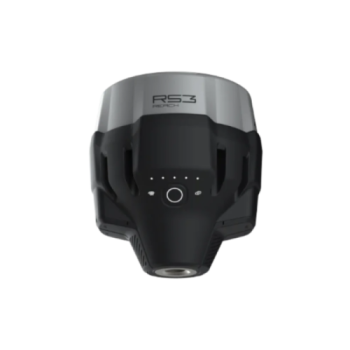

RTK Correction: Network RTK, Emlid RS Base Station (optional)

Hovering Accuracy:

±10 cm with RTK

±1.5 m without RTK

Capability: Dual-RTK

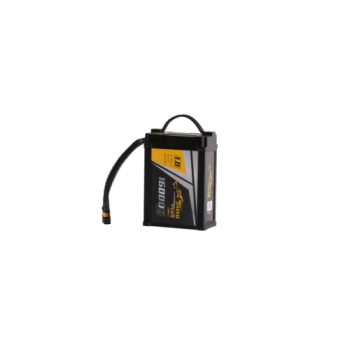

Battery

Type: Smart LiPo

Capacity: 16,000 mAh

Nominal Voltage: 44.4 V

Weight: 4.2 kg

Minimum Charging Time: 11 minutes

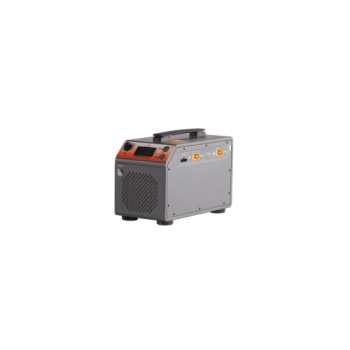

Charger: 4 ports (2 balanced)

Charger power: 3000 W

Camera and communication

Wide-angle camera, vertically adjustable (0–180°)

Resolution: FHD

Effective remote control range: ≈ 3.5 km

Protection: Limited water and dust resistance

High-pressure cleaning system

Maximum cleaning system pressure: 200 bar

Spray lance: Removable

Lance extension: ±180 mm

Spray nozzle: 25°

Nozzle holder compatibility: M18 × 1.5

Nozzle holder: Fixed or tiltable

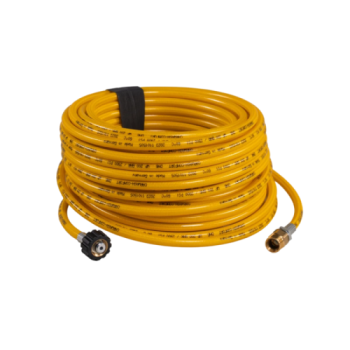

Hose length (optional): 30 m or 60 m

Radio frequencies

Remote control and telemetry: 2.4 GHz

WLAN: 2.4 GHz

LoRa: 862–1020 MHz

A technical datasheet is available for download (on the right on a PC and below on a phone).
