skyVac Atex A37G kit 12m Suction section with safety

skyVac Atex A37G kit 12m Suction section with safety - SkyVac®

SkyVac ATEX 37G Vacuum Cleaner.
Designed and manufactured for excellent results in environments prone to airborne combustible dust.

Single-phase explosion-proof industrial vacuum cleaner:
Our ATEX A37G is suitable for Zone 22 sites and features a brushless motor and a high-efficiency filtration unit. The unit also comes with a range of high-access anti-static poles and accessories for versatile cleaning.
This system makes high-level ATEX cleaning more cost-effective than ever before; it's an incredibly well-designed dust extraction system.

Anti-static safety poles and end tools:

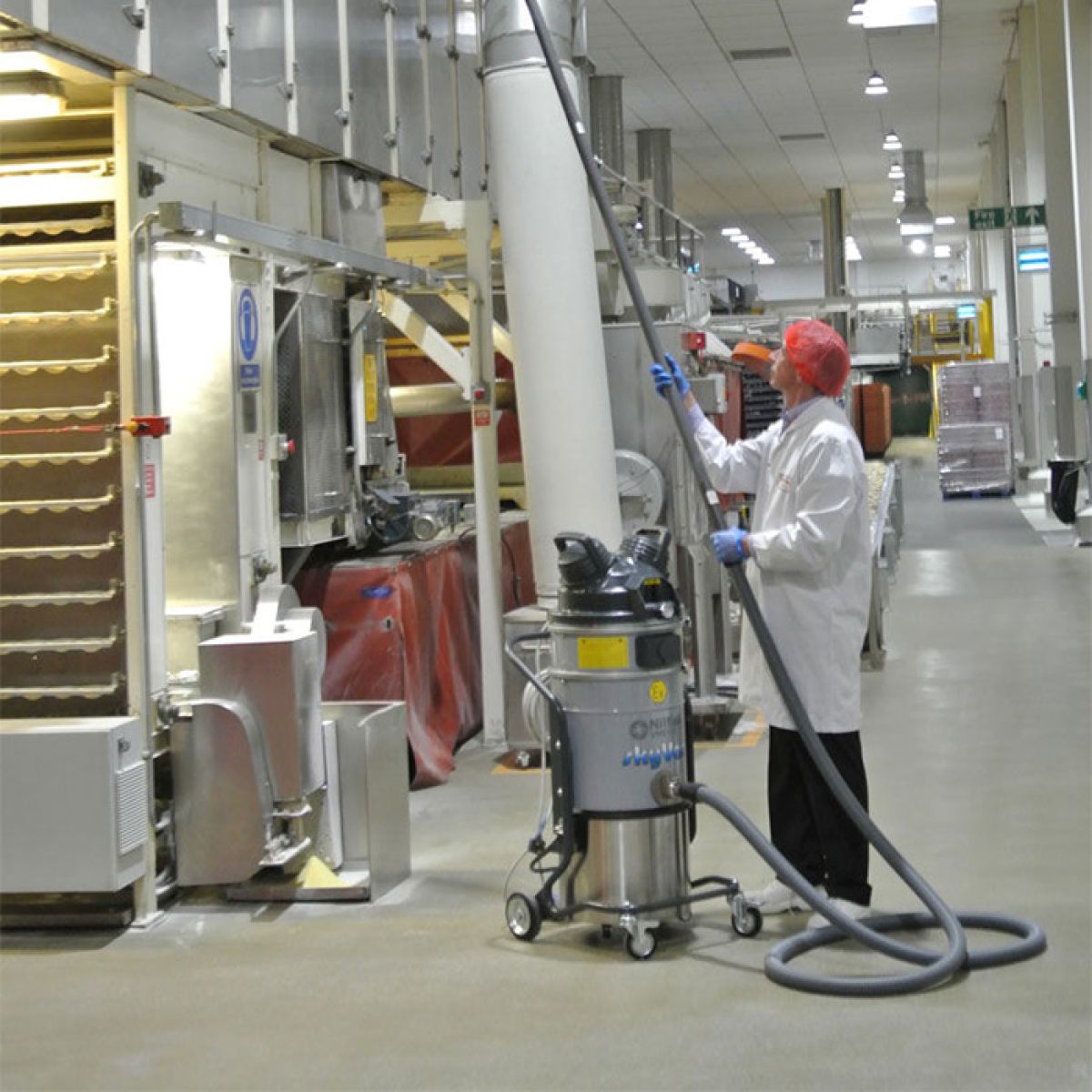

Put high spaces within reach with the new suction poles and end tools! With the added security of the safety interlock system, you can remove dust from everything from vents, window sills, beams, ledges, and pipes.

NOW INCLUDES OUR NEW ATEX TOOL CARRY BAG TO KEEP YOUR TOOLS SECURELY STORED.

Key features of the A37G:
Suitable for ATEX Zone 22 combustible dust, Class M dust
Single-phase explosion-proof vacuum
Brushless induction motor
Clean filter cleaning system while in operation
Removable stainless steel hopper
Industrial trolley with locking casters

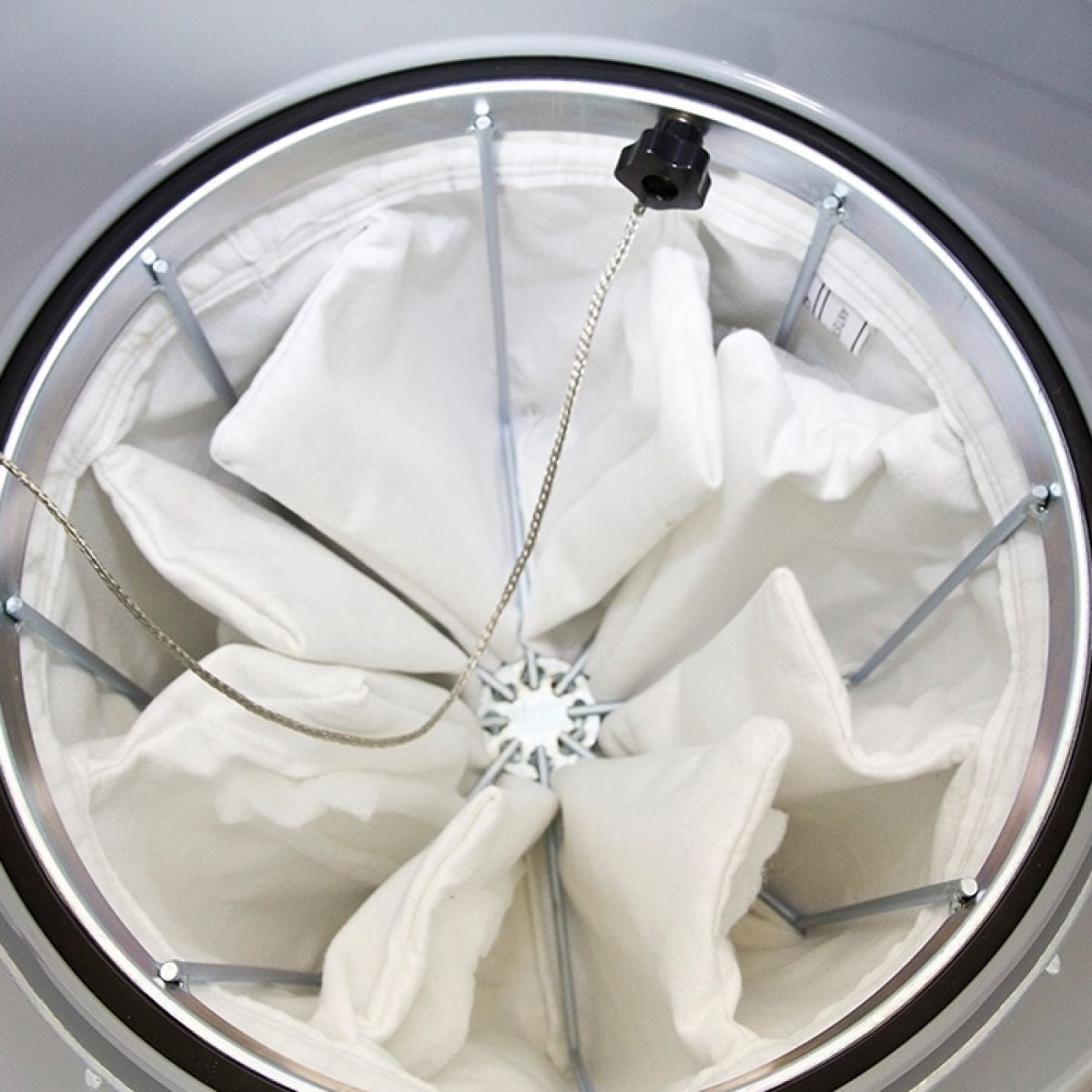

Large filtration area
What is ATEX Zone 22 classification?
Zone 22 is an atmosphere in which a cloud of combustible dust may form. A combustible dust cloud typically forms during manufacturing or storage processes. The flammable dust, powder, or gas disperses into the air for short periods of time, and once airborne, the hazardous cloud of particles creates a potentially explosive environment.

All our ATEX systems and poles are fully ATEX certified and ideal for use in ATEX Zone 22 environments.

Dust Applications and Industrial Use ATEX Zone 22:
The ATEX A37G extraction system is ideal for removing dusts in classes L, M, and H. It also includes all hazardous and explosive dusts with OEL values <0.1 mg/m3 and carcinogenic dusts. It also includes dusts contaminated with germs and bacteria in ATEX Zone 22.
Suitable for use in the chemical, wood processing, plastics, metal, pharmaceutical, paper, and textile industries.

This vacuum cleaner is also suitable for tradespeople such as roofers, painters, bakers, and other Zone 22 environments. Choose from our standard anti-static pole set, which can be built to your preferred height, or our telescopic suction pole set, both certified for use in Zone 22 environments and designed to be lightweight yet robust for easy cleaning at height.



ATEX Safety Locking System 1.5m Suction Pole: (SVX1)

Material: Carbon Fiber
Length: 1.5m
Weight: 282g
Safety Locking Mechanism
ATEX Telescopic 6m:

Collapsed Height (Telescopic Pole): 1.93m
Diameter: 44mm
Construction: Carbon Fiber
4 Folding Sections / 3 Clamps
Weight: 1.3kg
ATEX Telescopic 7.5m:

Collapsed Height (Telescopic Pole): 1.93m + SVX1-CLIP 1.50m
Diameter: 44mm
Construction: Carbon Fiber
4 Folding Sections / 3 Clamps
Weight: 1.6kg
ATEX Telescopic 9m :

Collapsed height (telescopic pole): 1.93 m + 2 x SVX1-CLIP 1.50 m
Diameter: 44 mm
Construction: Carbon fiber
4 foldable sections / 3 clips
Weight: 1.9 kg A37G vacuum cleaner:

Motor power: 1100 watts max
Airflow: 3600 liters per minute (maximum)
Decibel level: 73 dB
Container capacity: 37 liters
Mains connection: 240 V or 110 V
Power cord length: 7.5 m
Weight: 42 kg
L x W x H (cm): 56 x 57 x 124
Main filter area (cm²): 10000
Main filter type: Filter Class L anti-static star
ATEX Small Round Brush (SVX9-4):

Diameter: 70 mm
Weight: 150 g
Length: 42 cm
ATEX Large Round Brush (SVX8-4):

Diameter: 100 mm
Weight: 376 g
Length: 47 cm
ATEX Crevice End Tool (SVX7-4):

Weight: 118 g
Length: 57 cm
ATEX 65-degree Carbon Fiber Tool Holder (SVX3-CLIPS):

Angle: 65 degrees
Weight: 100 g
Length: 27 cm
Material: Carbon Fiber
ATEX 155-degree Carbon Fiber Tool Holder (SVX2-CLIPS)

Angle: 155 degrees
Weight: 96 g
Length: 34 g
Material: Carbon fiber
ATEX carbon fiber straight hose connector (SVX5):

Weight: 50 g
Length: 30 cm
Material: Carbon fiber
ATEX anti-static pole carrying bag:

Dimensions (L x W x H): 159 x 36 x 17 cm
Weight: 1540 g
NEW ATEX accessory carrying bag:

Dimensions (L x W x H): 46 x 43 x 22 cm
Weight: 550 g
Anti-static collection hose:

Length: 5 meters
Diameter: 38 mm
Industrial vacuum cleaner (Nilfisk VHS110 Z22)
Safety Lock System 155-degree Carbon Fiber Tool Holder
Safety Lock System 65-degree Carbon Fiber Tool Holder
Safety Lock System Straight Carbon Fiber Hose Sleeve Connector
5m 38mm Anti-Static Flexible Pick-up Hose
3 x Assorted Internal End Tools
Anti-Static Pole Carry Bag
Anti-Static Accessory Bag
Anti-Static Rubber Crevice Tool (for low-level cleaning)
PLUS your choice of pole set, either anti-static suction poles or anti-static telescopic poles.
