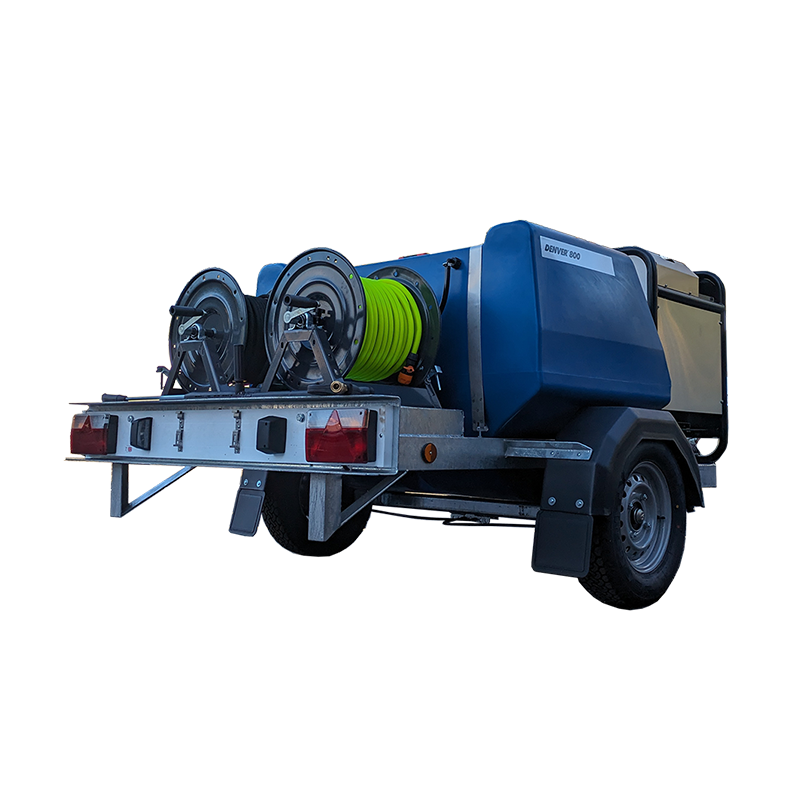

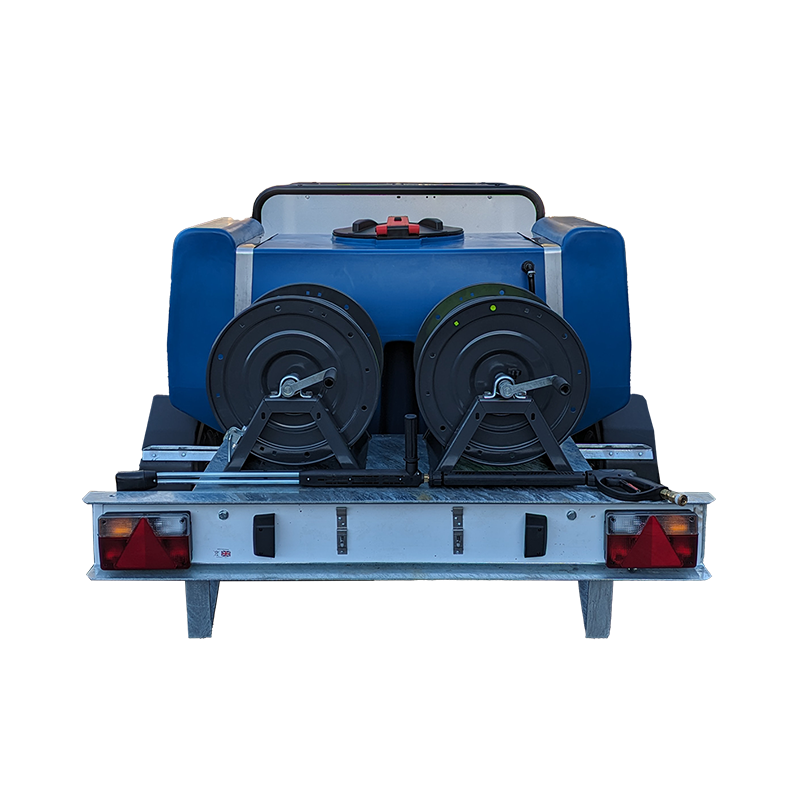

high pressure hot water trailer 800 liters 16 l/min, 200 bars

high pressure hot water trailer 800 liters 16 l/min, 200 bars - Streamline

Maximum pressure rating – 200 bar (2,800 psi)
Maximum flow rating – 16 LPM (4.2 GPM)
Maximum temperature rating – 140 degrees C (284 degrees F)
Bowser Specifications
Durable, corrosion-resistant polyethylene tank, baffled for safe water transport
Robust, hot-dip galvanized steel frame, fully highway-rated
Adjustable jockey wheel and ball-type hitch (eye-type hitch option available upon request)
EU-spec mudguards, 13-pin plug, and road lighting
Twin rear lights housed in a steel channel for added protection
Equipped with rubber suspension, automatic reverse braking, and a hand-operated parking brake
800-liter blue tank. Pump and Motor Specifications
Yanmar L100 diesel engine, electric start
Automatic retarder to reduce rpm in bypass phase
Comet triple-piston gear pump with relief valve – for smooth and reliable operation
Heavy-duty 33" twin lance with 1/4" MEG 25-degree flat fan nozzle
60-meter high-pressure double-wire rubber hose – for industrial use and increased longevity
Chemical injector on unloader with attached small filter – for suctioning detergents
Heavy-duty metal frame – for strength and maneuverability
Fuel tank with level float
Vertical twin-coil boiler with stainless steel jacket for increased longevity, with thermal protection
Flame control kit
Electronic temperature control
Hotcube dimensions: 3600 mm (L) x 1750 mm (W) x 1 450 mm (H) cm
