High pressure trailer 800L 16 l/min 276 bar

High pressure trailer 800L 16 l/min 276 bar - Streamline

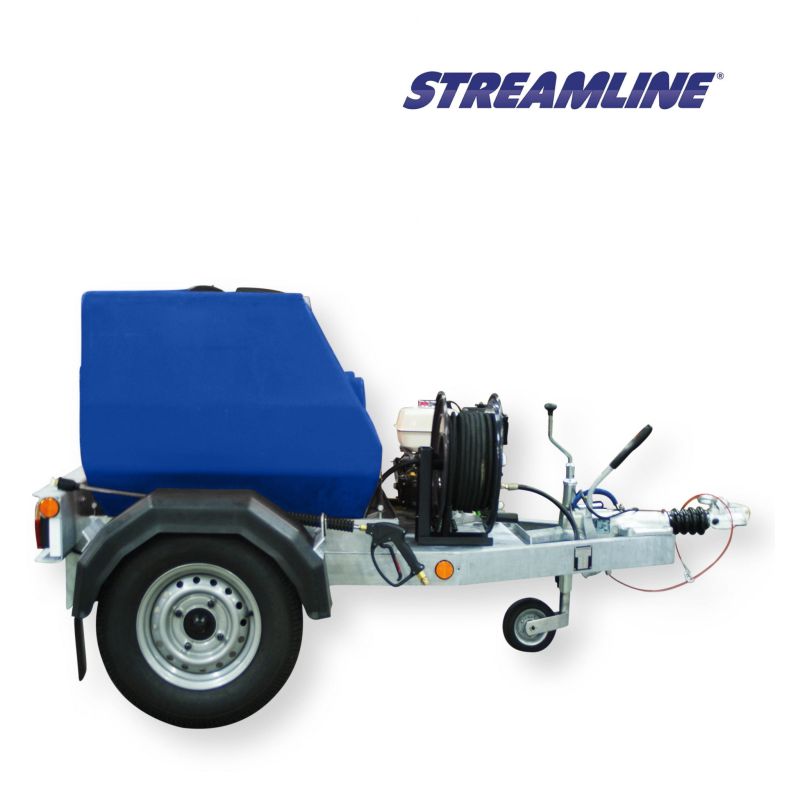

The high-pressure trailer, mounted on a single-axle chassis, features a Honda Interpump engine and pump combination, capable of producing a maximum flow rate of 16 l/min and a maximum pressure of 200 bar. It comes complete with a 30 m high-pressure hose.

This is probably the most compact trailer-mounted pressure washer on the market today, with a total length of less than 2.5 m. A robust and well-built trailer, compliant with all current regulations and approvals, with a powerful engine and pump combination. This trailer offers a solution for situations where water is easily required far from a water source and for the most demanding outdoor cleaning tasks.

Maximum nominal pressure – 200 bar (2,900 psi)
Maximum nominal flow rate – 16 l/min (3.95 gpm)
Maximum nominal temperature – 60°C (140°F)

Durable, corrosion-resistant polyethylene tank, partitioned for safe water transport
Robust hot-dip galvanized steel frame, fully approved for highway towing
Adjustable jockey wheel and ball hitch (eye hitch option available on request)
EU-spec mudguards, 13-pin socket, and road lighting
Two rear lights housed in a steel channel for added protection
Equipped with rubber suspension, automatic reverse braking, and a hand-operated parking brake

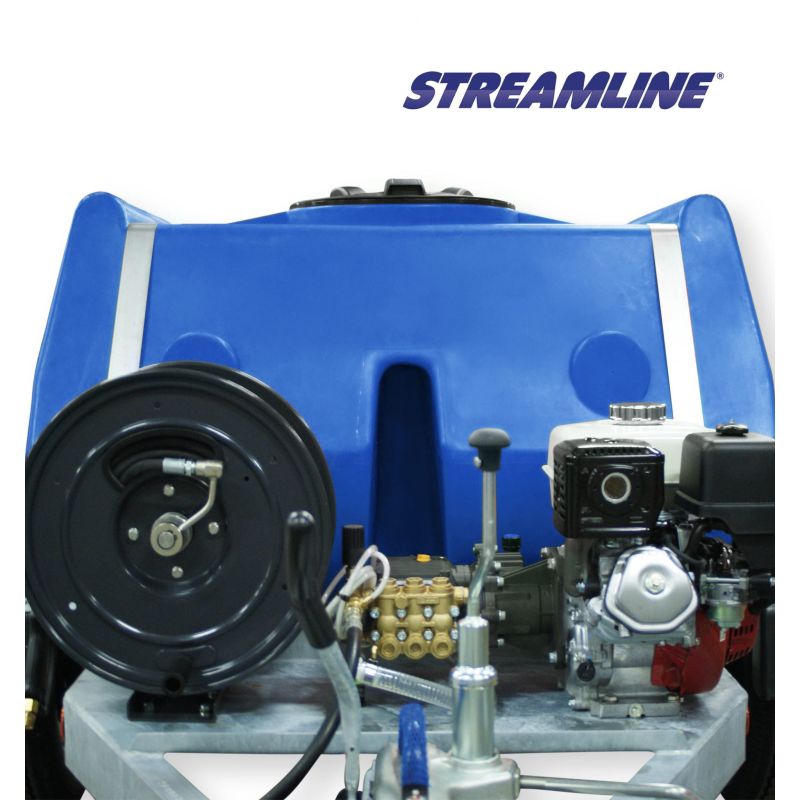

Pump and motor:
Interpump series piston pump and gearbox, with a maximum pressure of 200 bars and a maximum flow rate of 16 lpm, capable of powering accessories such as rotary hard surface cleaners and water brooms, etc. Reliable Honda GX390 petrol engine for easy starting and smooth, powerful performance, mounted on a galvanized frame.
Relief valve with internal bypass ensures pump seal longevity.
Inline suction filter prevents dirt from entering the pump.
Chemical injection valve with line and filter for detergent application.
Heavy-duty, lockable metal hose reel mounted on a pedestal with 30 metres of high-pressure, twin-wire hose, 36-inch twin lance, and 1/4″ MEG jet nozzle.
Assortment of 5 different nozzles: 15-degree, 25-degree, 40-degree, pencil tip, and foam – for every eventuality.
Overall dimensions: 2450 mm (L) x 1750 mm (W) x 1270 mm (H)
